| Pitch | P2.6 | P2.9 | P3.91 | P4.81 | P5.95 | P6.25 |
| Cabinet size | 500 x 500mm / 500 x 1000mm | |||||
| LED Type | SMD1515 Black | SMD1515 Black | SMD2121 Black | SMD2121 Black | SMD2121 Black | SMD2121 Black |
| Cabinet Weight | 8 Kg | 8 Kg | 8 Kg | 8 Kg | 8 Kg | 8 Kg |
| Square Resolution | 147 456 | 112 896 | 65 396 | 43 222 | 28 224 | 25 600 |

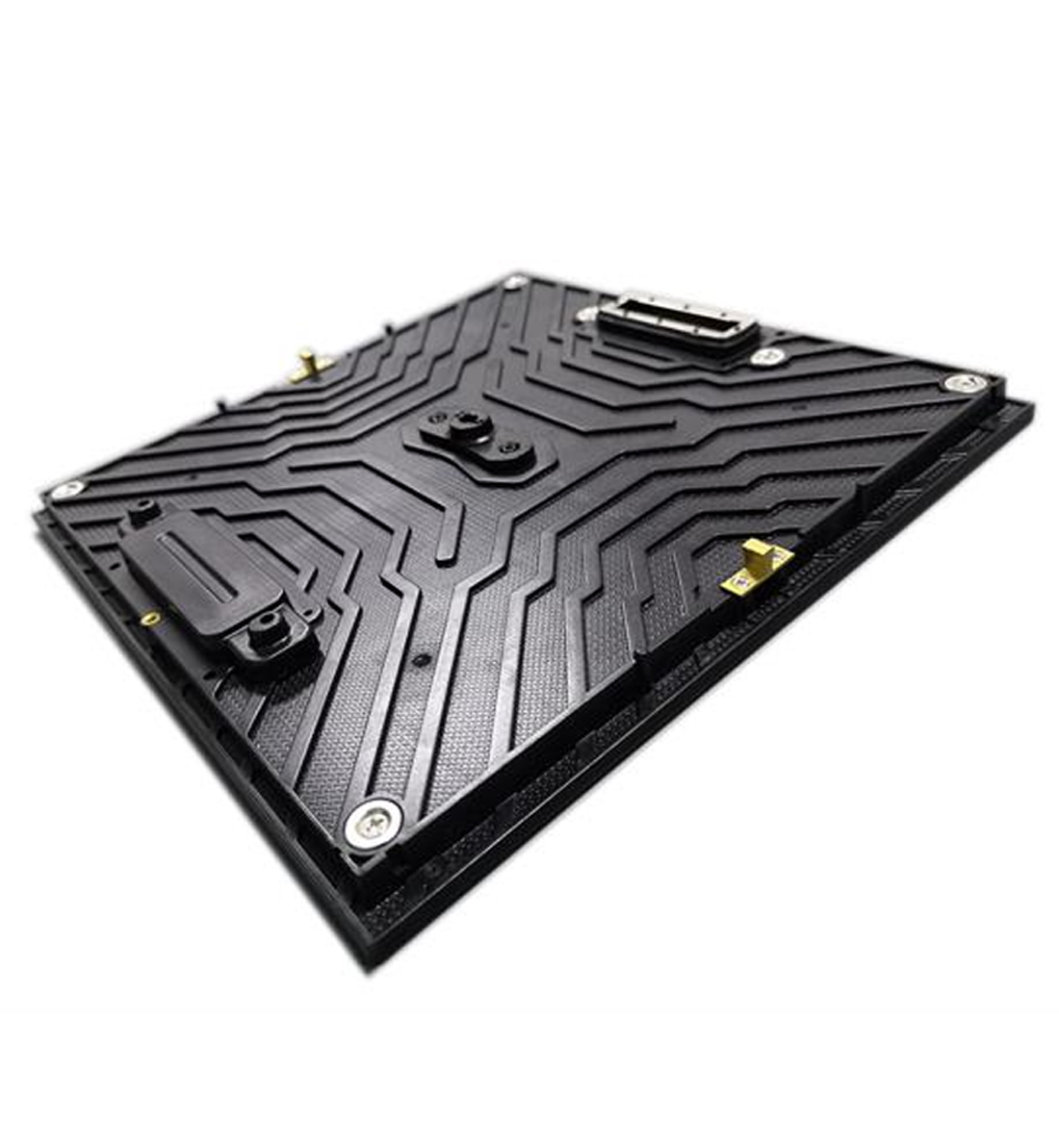

| Module Size | 250 x 250mm | |||||
| Cabinet Material | Aluminum Die Casting Cabinet | |||||
| Driver IC | MB15153 / ICN2053 | |||||

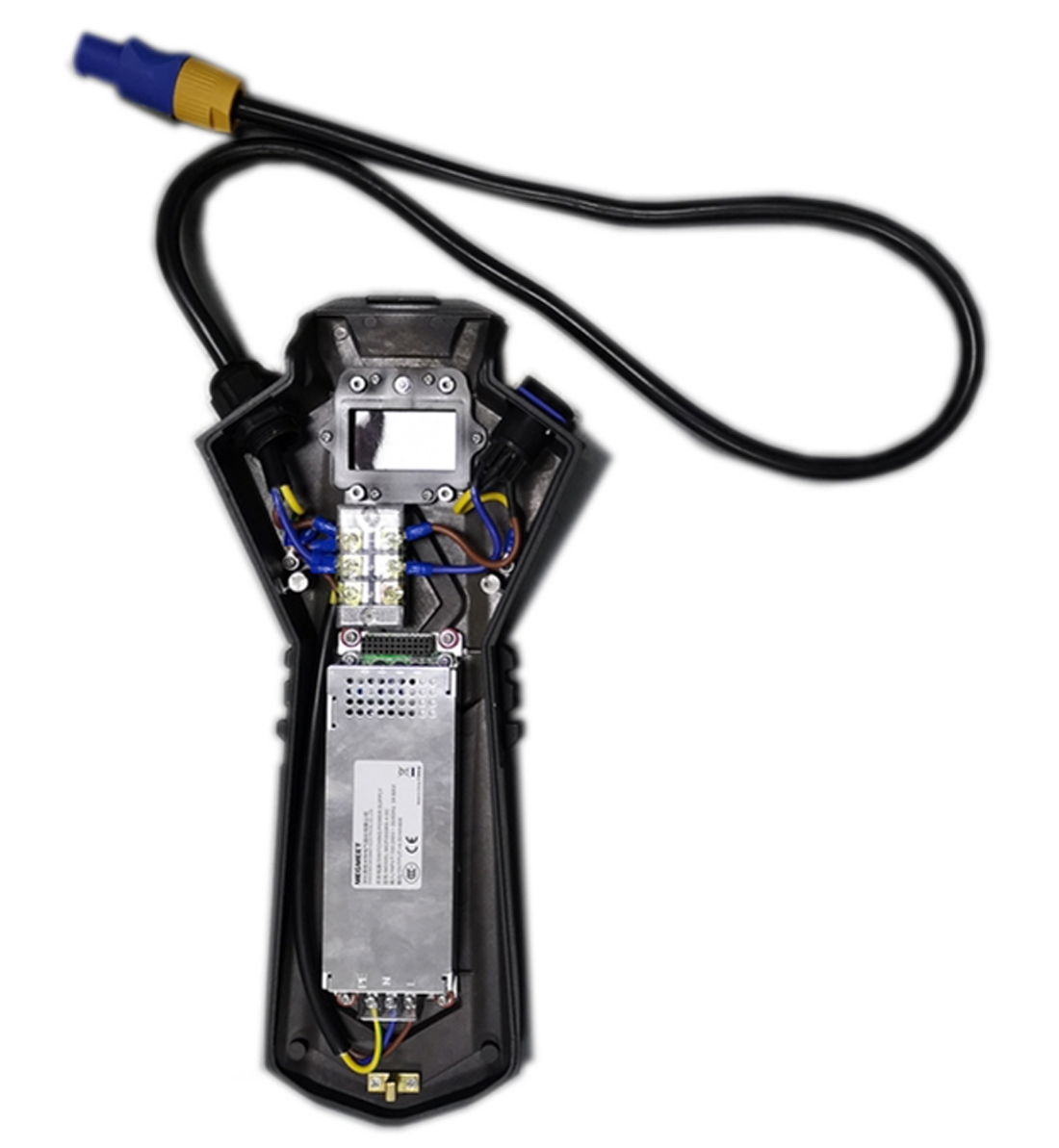

| Power supply | Meanwell Power supply | |||||
| Vertical Viewing Angle | 140° | |||||
| Horizontal Viewing Angle | 140° | |||||
| Brightness | 1000≤ ; ≤1300 | 1000≤ ; ≤1300 | 1000≤ ; ≤1300 | 1000≤ ; ≤1100 | 800≤ ; ≤1100 | 800≤ ; ≤1100 |
| Brightness adjustment | Manual, 256 levels ; Auto, 8 levels | |||||
| Grey scale | 16 bit | |||||
| Operating Temperature | –20℃~+50℃ 10%~90%RH | |||||
| LEDs Lifetime | 50 000 hours | |||||
| Input Voltage | AC110V/230V/380V±10% | |||||
| Input Power Frequency | 50/60Hz | |||||
| Max/Abg Power
Consumption (W/m2) |
800/240 | |||||
| Refresh Rate | ≥3840(high level IC) | |||||
| Frame Rate | > 60 frames/sec | |||||
| Defect Rate | ≤0.0002 | |||||
| Data Transfer Method | RJ45 | |||||
| Humidity | 0–90% | |||||
| Waterproof Grade (Front & Rear) | IP30/IP30 | |||||
| Way of Drive | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/16 Scan | 1/10 Scan |
| Color Temperature | 6500K±500 | |||||
